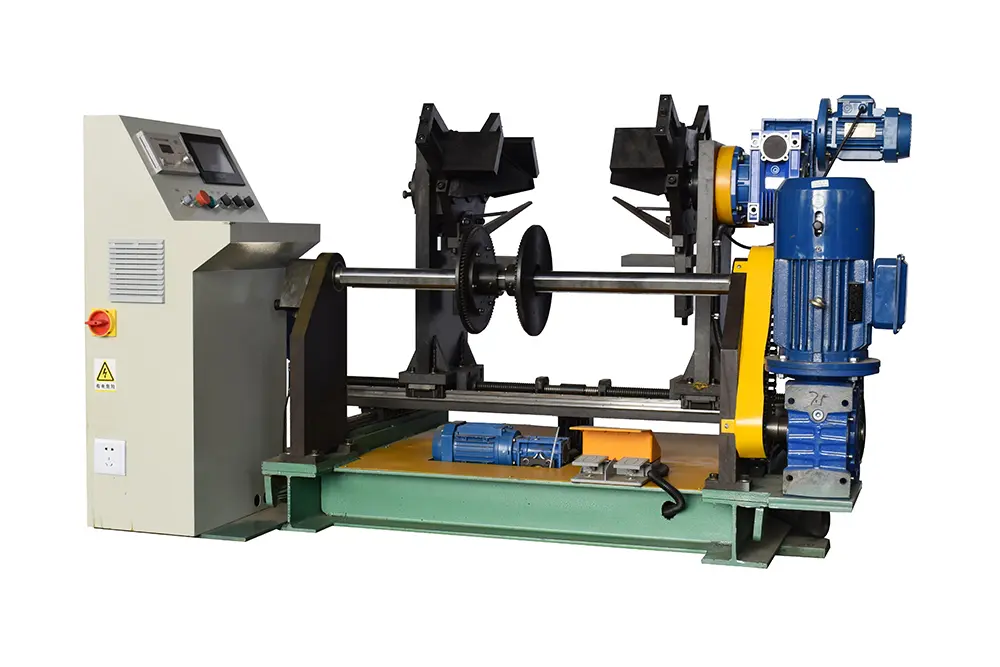

| Code | SHRX-1 |
| Suitable Transformer Capacity | 30~1250kVA |
| Winding Method | Horizontal type |
| Up and Down Distance | 200MM |
| Front and Back Max Distance | 250MM |
| Drive Gear Revolving Speed | 0–300 r/min |
| Control System | PLC, Touch Screen |

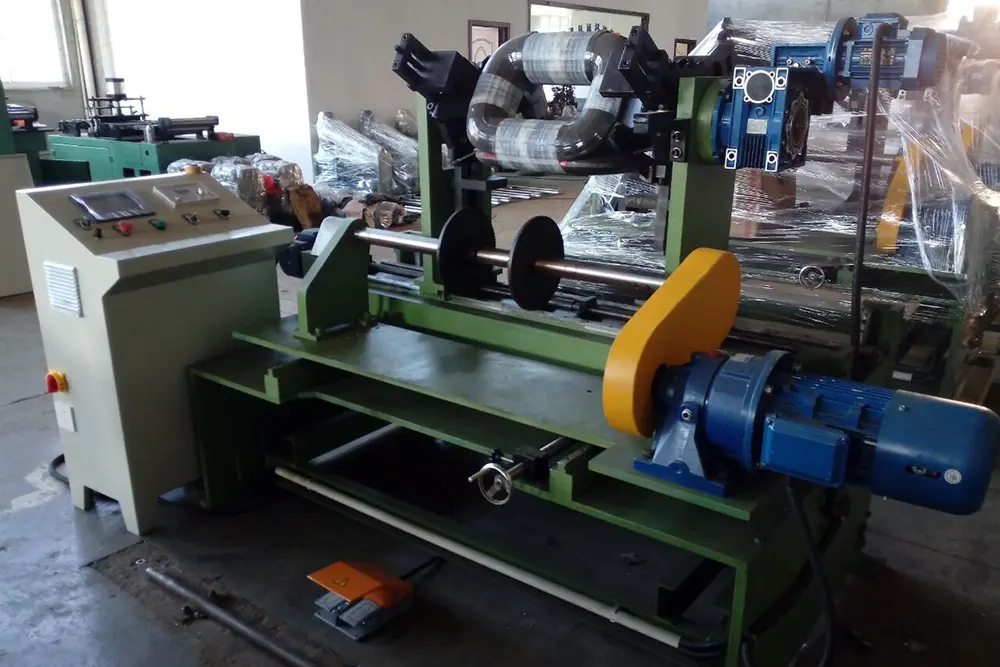

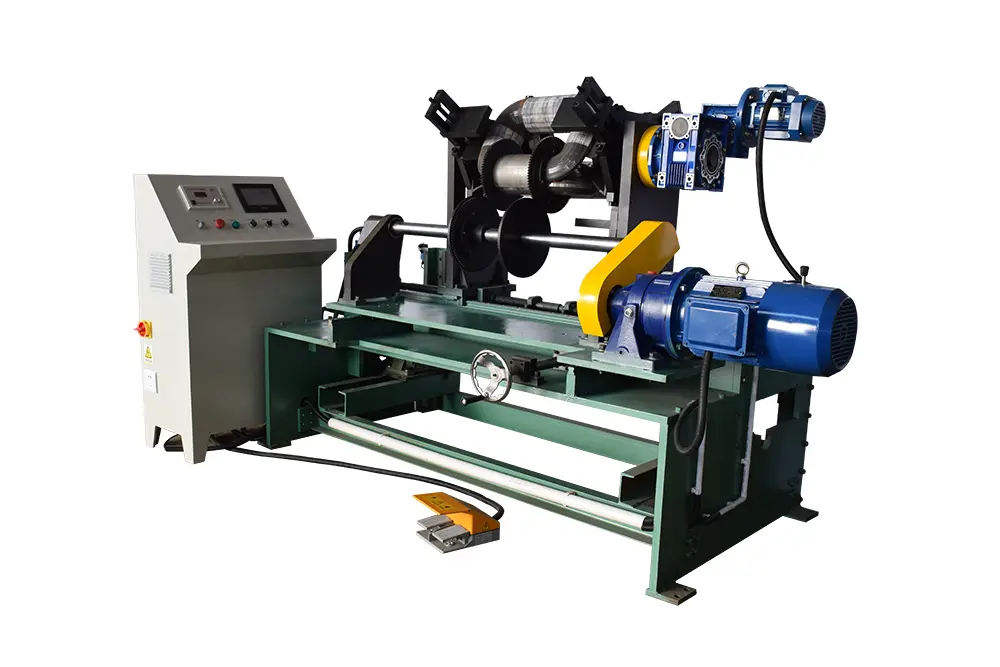

| Code | SHRX-2 |
| Suitable Transformer Capacity | 30–630 KVA |
| Winding Method | Horizontal type |
| Front and Back Max Distance | 500MM |
| Drive Gear Revolving Speed | 0–300 r/min |
| Control System | Touch Screen |
Boasts ±0.01mm winding accuracy, ensuring uniform coil arrangement. It effectively reduces core loss of transformers/inductors and improves the qualification rate.
30% more efficient than traditional winding machines. Equipped with automatic feeding and tension control, minimizing manual intervention.
Flexibly accommodates 3D wound cores of different sizes. No need for frequent mold replacement, suitable for multi-variety production.
Constructed with high-strength steel, resisting vibration. Intelligent fault alarm function reduces downtime and maintenance costs.
Touch-screen control interface with pre-set parameters. Operators can master it quickly, reducing training costs.

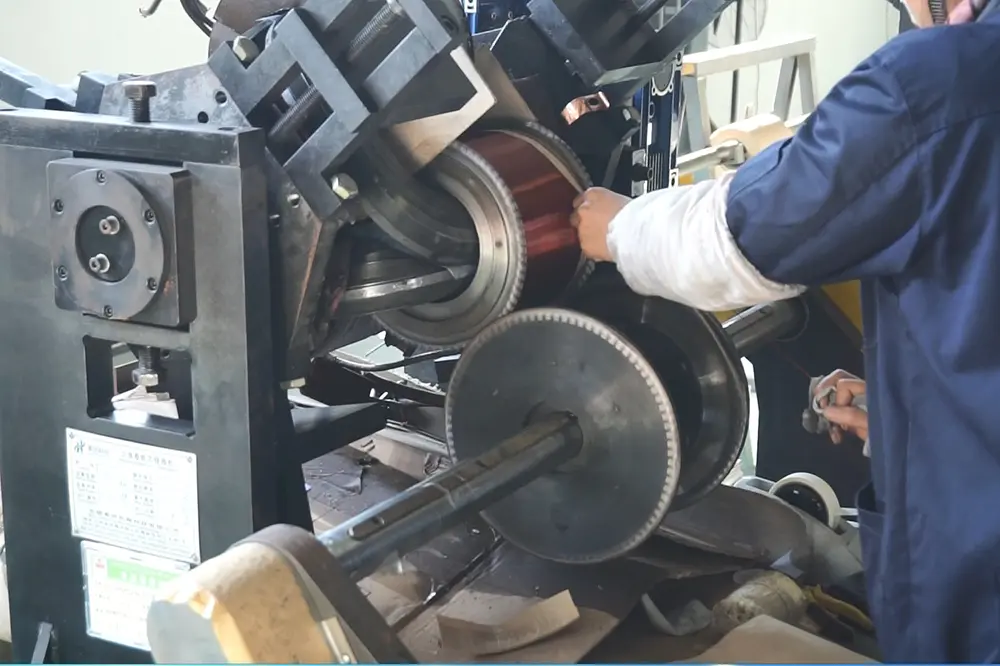

Widely used in medium and low-voltage transformers. It precisely winds wire on 3D cores to reduce magnetic flux loss and meet energy efficiency standards.
Applied to manufacturing filter, rectifier, and reactor inductors. Adjustable tension control ensures tight winding for stable inductance values.
Adapted for PV inverters, energy storage transformers, and EV on-board transformers, satisfying requirements for miniaturization.
Used for high-speed railways, ships, and aerospace. Customizable for non-standard cores with strict environmental adaptability needs.
