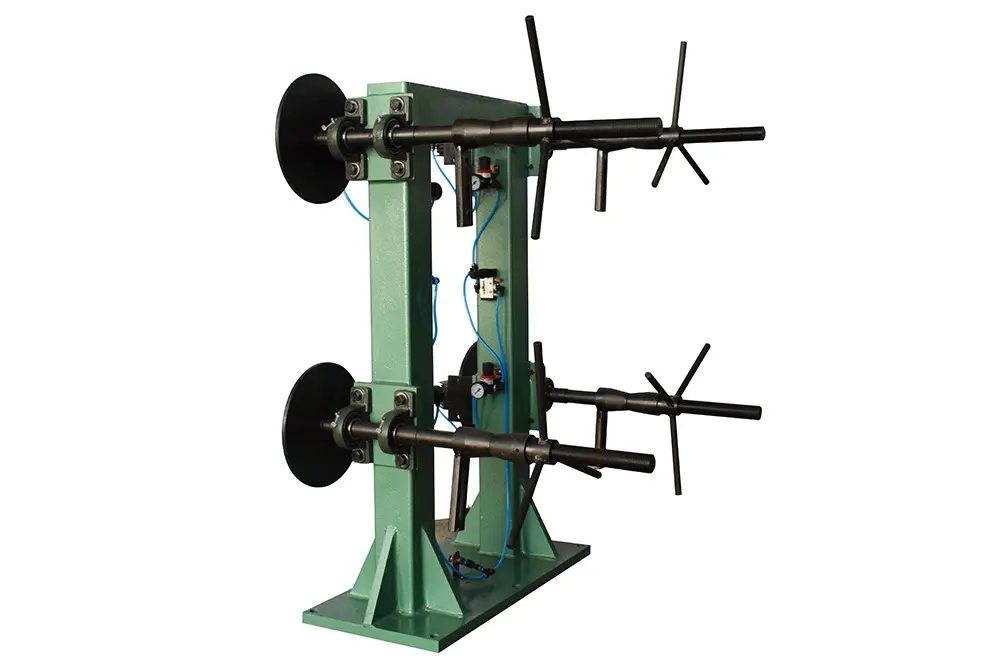

| Code | SHZL-4 |
| Max Load Capacity | 200 kg |
| Tray Height | ≤ 400 MM |
| Tray Diameter | ≤ 600 MM |
| Tension Control Range | 5 N – 500 N (adjustable in 1 N increments) |
| Tension Accuracy | ±1% of set value (closed-loop control) |
| Wire Adaptation – Round | Diameter: 0.1 mm – 10 mm (copper/aluminum/insulated) |
| Wire Adaptation – Flat | Cross-section: 1 mm×3 mm – 5 mm×15 mm |
| Pay-Off Speed | 0.2 m/min – 5 m/min (stepless, synced) |
| Speed Stability | ±0.2 m/min |

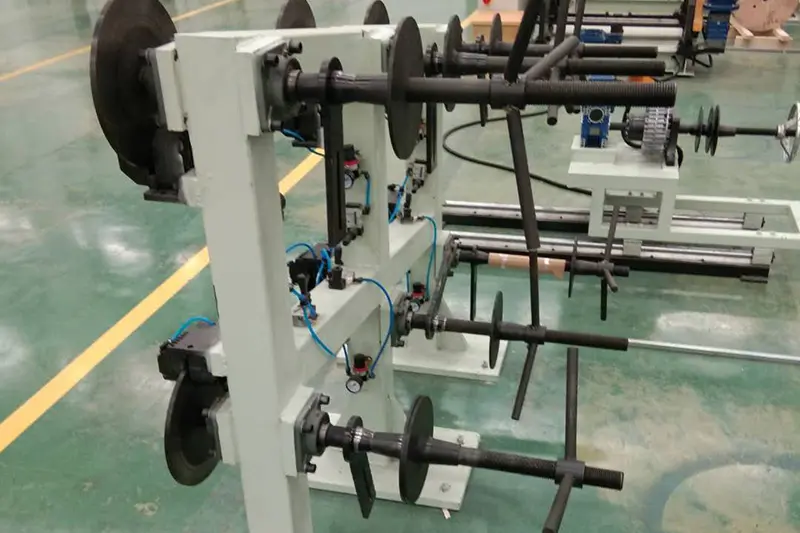

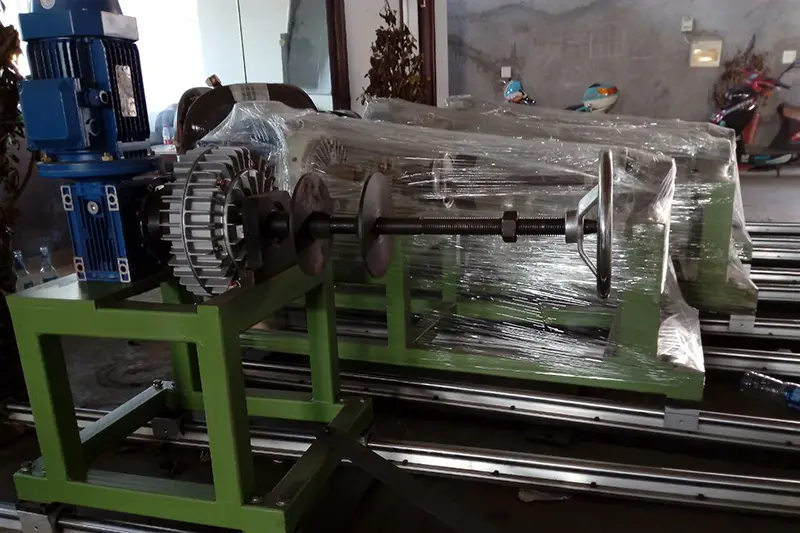

Accurate tension from 5–500 N (±1%) prevents conductor thinning and insulation damage, ensuring perfect low-voltage winding electrical performance.
Handles round, flat, and bundled wires. Supports over 50 pre-set process parameters for high-efficiency multi-batch production switching.
Supports PLC/RS485 linkage with winding machines to synchronize payout speed (0.2–5 m/min) and offers wireless remote control capabilities.
Features abnormal tension alarms, wire break detection, and polyurethane guide wheels to prevent scratches and unqualified windings.
Vertical footprint ≤1.5 m², light weight (300–800 kg), and low noise (≤60 dB) make it suitable for flexible workshop deployment without special foundations.
Controls 5–300 N tension for 0.5–5 mm wires. Synchronizes with layer winding machines for tight, even coils, preventing breakdown.
Industrial control use (e.g., 220V/36V). Manages low tension (5–50 N) to protect thin wires (0.1–1 mm) from damage.
Ideal for medical/PV use. Polyurethane wheels protect thin insulation layers. Balances tension for parallel wires.
Ensures wire spacing error ≤0.1 mm to avoid casting bubbles. Guarantees coil consistency for mass production.
