| Specification Parameters | SH-1000 | SH-1250 |
|---|---|---|
| Code | SH-1000 | SH-1250 |
| Material roll inner | 500mm | 500mm |
| Material roll width | 1000mm | 1250mm |
| Material roll weight | 5T | 8T |
| Material thickness | 0.20-0.5mm | 0.20-0.5mm |
| Slitting width | 40-1000mm | 40-1250mm |
| Slitting speed | 0-60m/min; 0-90m/min; 0-150m/min; | |
| Slitting width error | ±0.1mm | ±0.1mm |
| Slitting burr | ≤0.02mm | ≤0.02mm |
| Slitting strips | 10 | 12 |
| Straightness deviation | ≤0.2mm/m | ≤0.2mm/m |
| Installing power | 35kw/55kw/85kw | 45kw/65kw/100kw |
Siemens PLC control ensures ≤0.05mm width error and ≤0.02mm burr (even for 0.18mm-thin silicon steel), preserving material magnetic performance.
250m/min max slitting speed plus EPC alignment & auto tool change reduce manual work, significantly boosting production throughput.
Handles 1250mm-wide, 0.2-0.5mm-thick coils and 20-25T loads, meeting diverse specification needs for silicon steel processing.
Durable alloy knives and YUKEN hydraulic parts resist wear, ensuring long-term consistent operation.

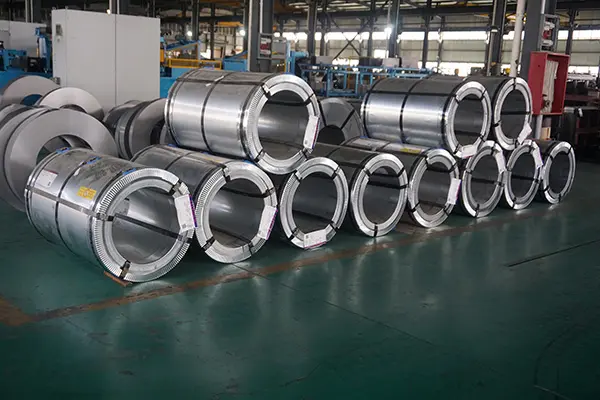

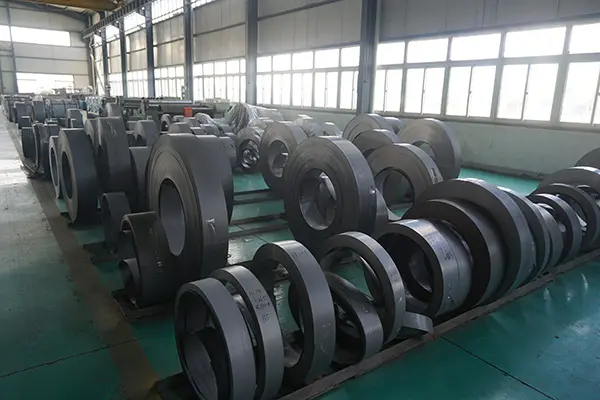

Slits silicon steel coils into high-precision strips (with ≤0.05mm width error) for making transformer cores, ensuring stable magnetic conductivity and low energy loss of transformers.
Processes thin silicon steel sheets (down to 0.18mm) into specified-width strips with minimal burr (≤0.02mm), which are used to fabricate motor stators and rotors, improving motor efficiency and service life.
Adapts to 0.2-0.5mm thick, 1250mm wide silicon steel coils, providing customized strips for manufacturing electrical components like inductors, reactors, and electromagnetic switches, meeting diverse equipment specs.
With 250m/min high efficiency and 20-25T load capacity, it mass-produces qualified silicon steel strips for power transmission and distribution equipment, supporting the stable operation of power systems.
Depending on your specific config and requirement, the system operates at speeds of 0-60m/min, 0-90m/min, or up to 0-150m/min, with a maximum configuration slitting speed reaching up to 250m/min.
The standard models SH-1000 and SH-1250 are optimized for processing material thicknesses ranging from 0.20mm to 0.50mm, and can handle high-precision sheets down to 0.18mm.
The machine features Siemens PLC control and robust tooling alignment, ensuring a high-precision slitting width error of ≤0.05mm and a minimal burr height of ≤0.02mm to maintain material integrity.
The SH-1000 model has a material roll weight capacity of 5T, whereas the SH-1250 model supports up to 8T. Custom configurations can accommodate heavy-duty coil loads up to 20-25T.
Yes, it features automated processes including EPC alignment and optional auto tool change systems to minimize manual intervention and maximize workflow efficiency.
