| Parameter | SH-3T | SH-5T | SH-10T |
|---|---|---|---|
| Loading | 3T | 5T | 10T |
| Working Height | 850mm | 1000mm | 1200mm |
| Iron Core Size | Length: 1500mm Width: 1500mm |
Length: 2000mm Width: 2000mm |
Length: 2500mm Width: 2500mm |
| Overturning Angle | 0–90° | 0–90° | 0–90° |

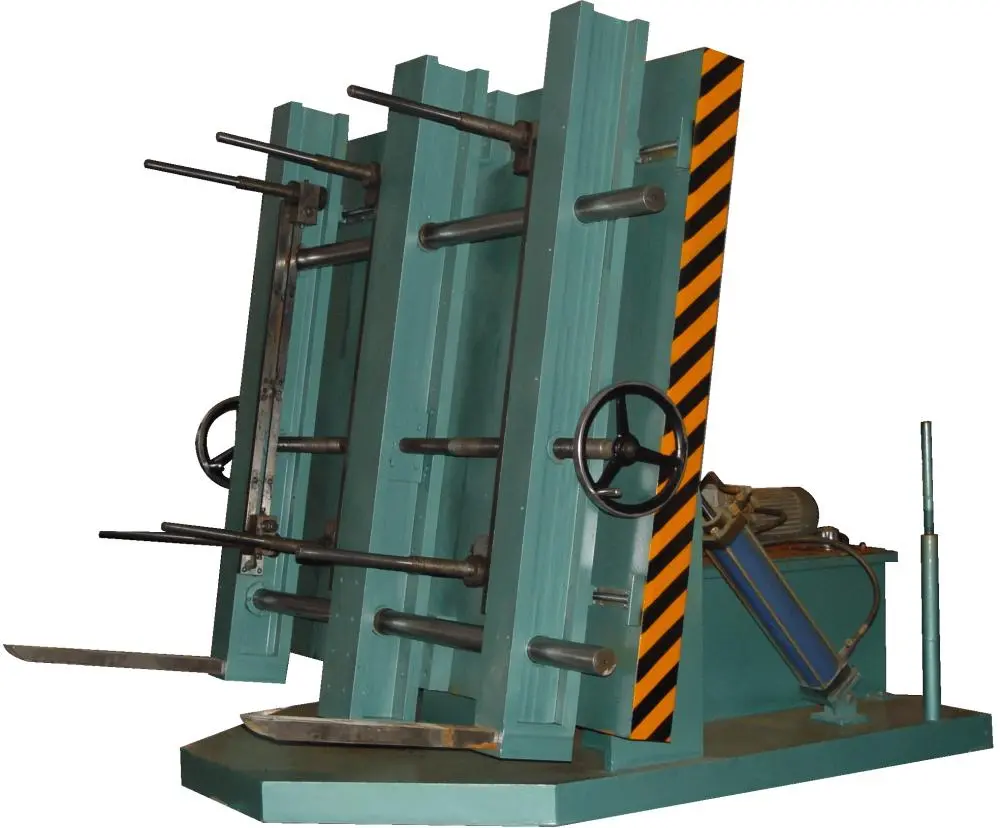

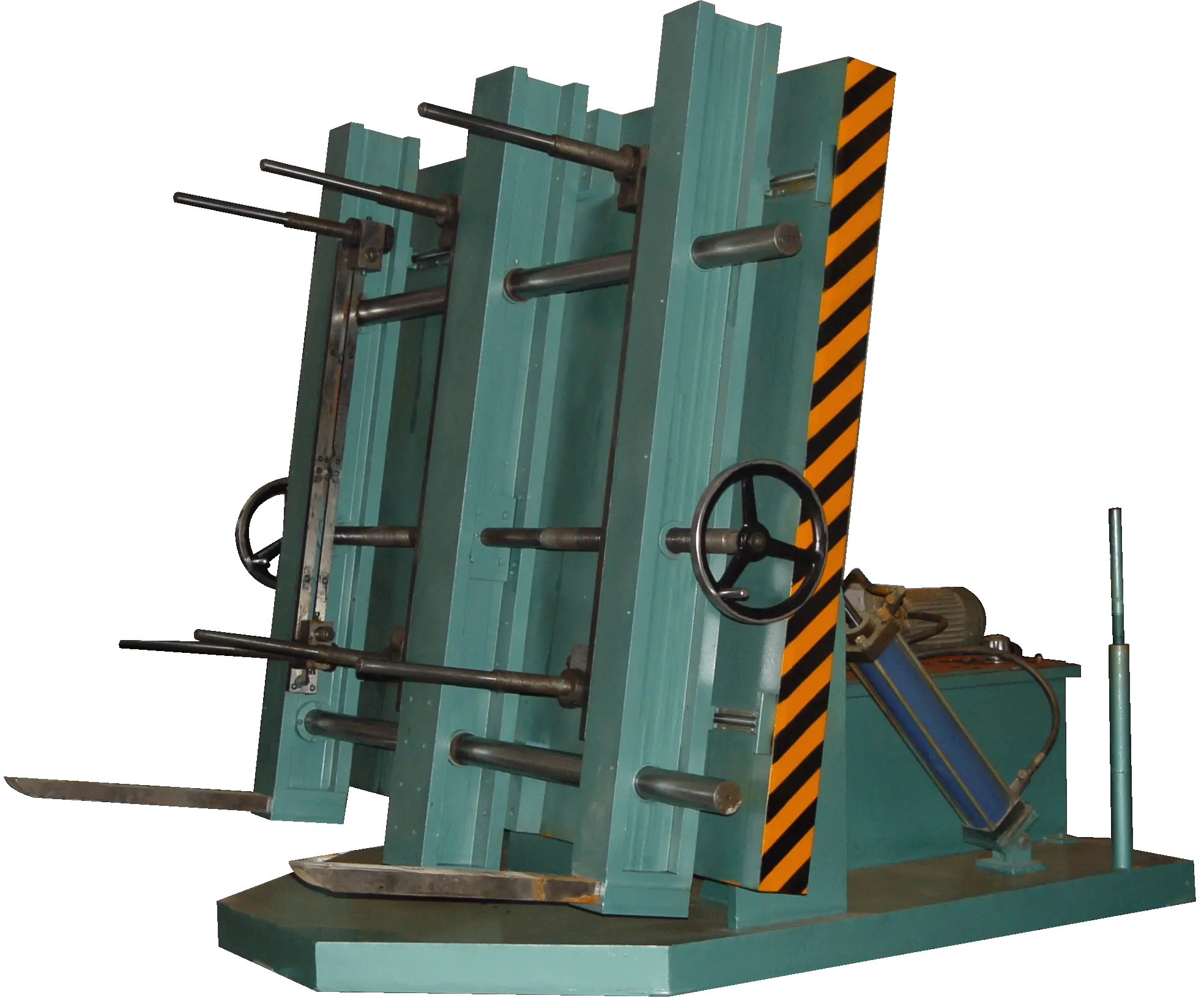

Supports a maximum load of up to several tons, enabling 0–180° continuous, low-vibration flipping. It avoids core displacement or deformation during turning, ensuring the structural integrity of silicon steel cores throughout the process.
Guarantees ±0.5mm positioning precision after flipping, ensuring the core remains aligned with subsequent assembly stations. This eliminates repositioning time and reduces assembly errors, directly improving production efficiency.
Equipped with anti-scratch padding on the work surface and adjustable clamping fixtures. It prevents scratches on the core's surface and avoids excessive pressure-induced deformation, maintaining magnetic performance.
Replaces manual flipping of heavy cores, significantly reducing workers' physical burden and lowering the risk of workplace injuries. Automated/semi-automated control simplifies operation and integration.
Used in the production of power, distribution, and special transformers. It facilitates smooth 0–180° flipping of the stacked cores, ensuring concentricity of the magnetic circuit and reducing no-load loss during winding and end face trimming.
Ideal for manufacturing high-frequency amorphous inductors and reactors. The scratch-resistant design protects fragile amorphous materials, ensuring stable electromagnetic characteristics in new energy vehicle systems and power reactors.
Provides stable positioning for quality checks. It allows inspectors to flip cores slowly to check for surface scratches or lamination loose spots, enabling precise correction of defective parts before final production.
