Modern electrical grids demand unprecedented efficiency, reliability, and thermal management. The integration of elevated voltage transmission equipment requires core manufacturing technologies that minimize magnetic hysteresis and eddy current losses. In this deep-dive analysis, we explore the mechanical innovations driving the output of advanced silicon steel cores, amorphous alloy assemblies, and precision winding infrastructures.
When operating transformers at elevated voltages, magnetic flux density must be carefully balanced to prevent saturation. Traditional hot-rolled or standard cold-rolled grain-oriented (CRGO) silicon steels fail to meet modern efficiency targets under high-load conditions. High-efficiency stacked core structures and amorphous alloy components solve this by aligning structural grain boundaries and utilizing super-thin laminations. Minimizing thickness significantly curtails eddy current pathways, ensuring the overall core operating temperatures remain well below thermal insulation thresholds.
Wuxi Shuhong Machinery Technology Co., Ltd. is a premier global manufacturer specializing in high-performance electrical machinery and advanced aluminium-plastic panel manufacturing machinery. Our core electrical portfolio includes complete silicon steel processing setups, iron core production lines, high-frequency amorphous core processing machinery, dry-type and oil-immersed coil winding systems, transformer oil tank lines, and customized heavy-duty tooling equipment. We also lead in manufacturing robust color coating lines for aluminum and steel plating.
View More
We configure production capabilities across four primary machinery groups to assist manufacturers of elevated voltage systems. This comprehensive ecosystem ensures that raw silicon steel or amorphous alloys transition seamlessly into precision coils and fully-tested finished distribution components.
Transparent pricing structures without third-party markups. Clear and detailed quotations tailored to technical demands.
Tailored configuration setups. We adjust machines to handle specific silicon steel alloys, widths, and winding profiles.
Complete lifecycle management. We provide overseas commissioning, routine wear-part replacement, and control updates.
Minimizing production downtime. Our global engineering task force provides online diagnostics within 24 hours.
Developing robust machinery is only half the battle. Precision equipment must solve complex engineering challenges across practical plant applications. Below are the operational areas where our machinery is actively deployed by high-voltage infrastructure manufacturers:
Procuring elevated voltage components from China represents a strategic alignment with the world's most dense electrical manufacturing ecosystem. By placing production facilities in Wuxi, Jiangsu Province, we tap into a complete upstream supply chain. This includes raw silicon steel manufacturers, advanced industrial CNC component providers, and specialized heat treatment facilities.

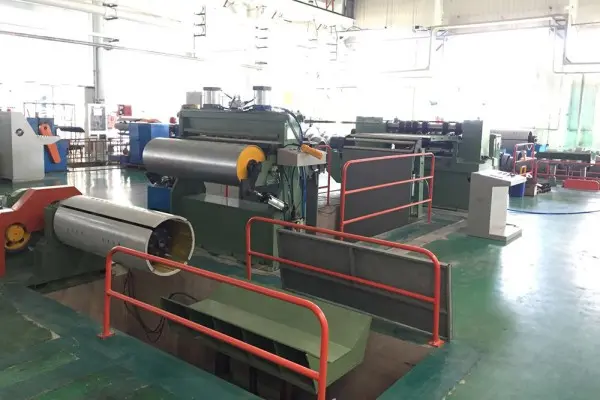

When international procurement teams evaluate suppliers, unit costs are just one factor. Total Cost of Ownership involves freight logistical efficiency, machine calibration longevity, and integration speeds. By utilizing specialized single-platform CNC slitting and cutting configurations, factories can reduce setup and testing times by up to 35%. Lower setup times directly reduce production bottlenecks, accelerating project delivery schedules for regional utility distributors.
Operating distribution networks globally requires strict adherence to localized grid rules. All our final dry-type and amorphous alloy transformers comply with IEEE, IEC, CE, and GB design directives. Additionally, control interfaces on CNC machines and winding lines feature multilingual integration options, enabling seamless onboarding for engineers in the Americas, Europe, and Asia-Pacific regions.

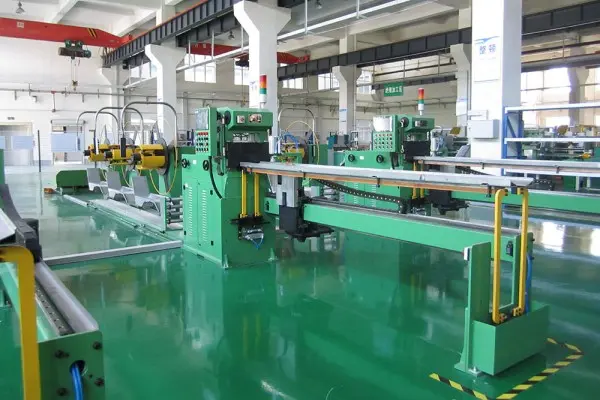

Stacked core designs provide superior mechanical stability and significantly lower core losses compared to standard cores. By using precision step-lap cutting technologies on our CNC lines, air gaps at the joint connections are minimized, lowering magnetic excitation energy requirements and reduced acoustic hum during operation.

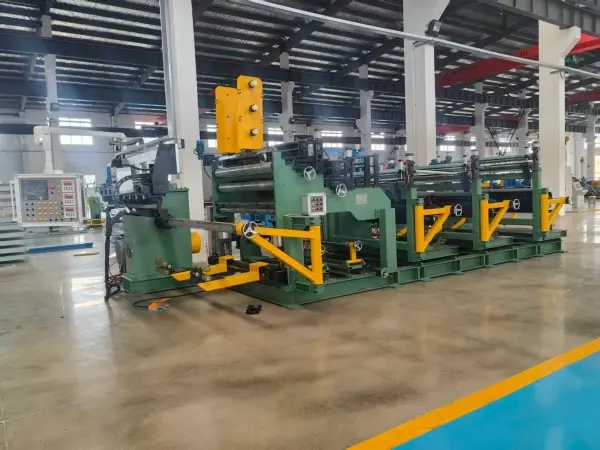

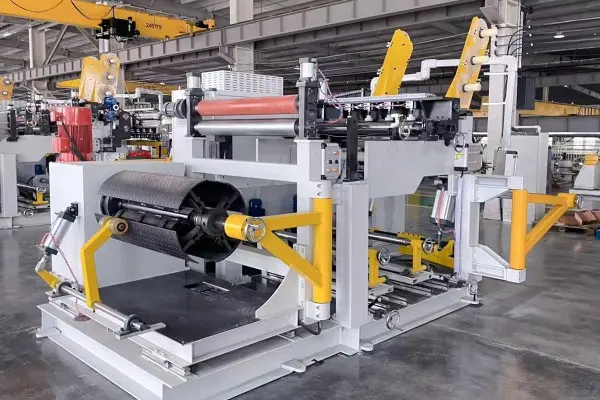

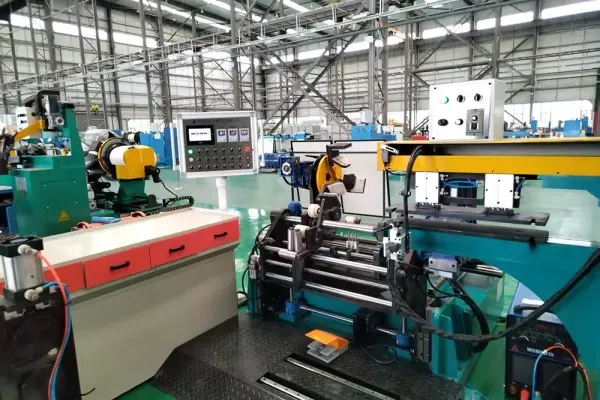

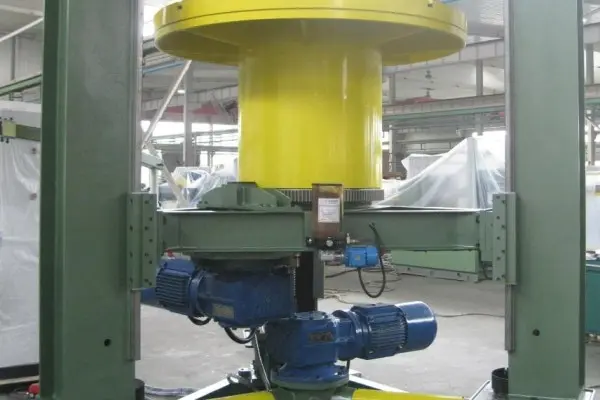

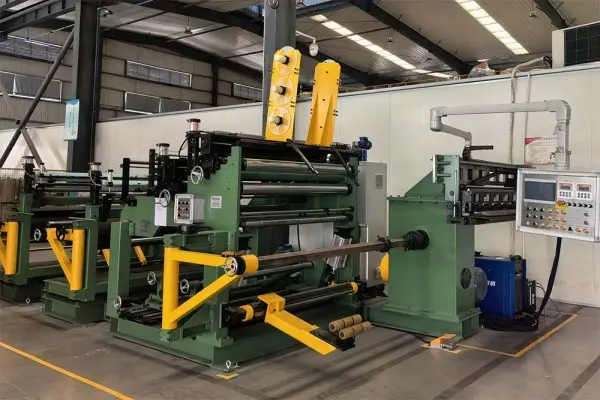

Our automated winding lines are equipped with continuous closed-loop tension systems. Dynamic pay-off stands adjust rotation speeds based on torque readings from the winding head. This prevents over-stretching the wire core and keeps the insulation lacquer intact, avoiding internal short circuits.

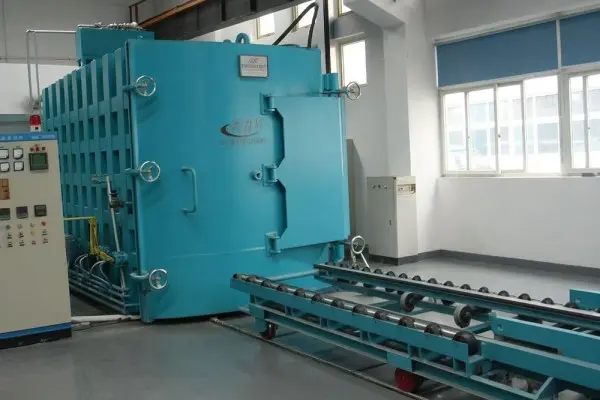

Mechanical processes like slitting and cutting disrupt the grain structures of the metals. Stress-relief vacuum annealing at high temperatures restores the material's magnetic qualities, optimizing permeability and reducing core losses under elevated load conditions.
Yes. While oil-immersed transformers have historically dominated outdoor facilities, modern resin-cast dry-type transformers offer reliable moisture resistance. They eliminate leakage risks, reduce fire hazards, and require less maintenance, making them suitable for environmentally sensitive sites.
Our CNC cutting lines and automated winding machinery feature standardized Ethernet interfaces and Modbus/TCP compatibility. This allows them to output production metrics, tooling cycle counts, and diagnostic telemetry directly to factory MES and SCADA systems.
Connect with our expert engineering team to discuss technical parameters, customize machine layouts, or request detailed quotes.
