Industry-Leading Machinery for High-Efficiency Core and Coil Production
In the rapidly evolving landscape of power electronics, the demand for higher power density, increased efficiency, and compact footprints has catalyzed a transition from traditional wire-wound transformers to Flat Transformer technologies. These components, often characterized by their low profile and high surface-area-to-volume ratio, represent the pinnacle of modern electromagnetic design. As a premier provider of Cheap Flat Transformer Products & Service, we analyze the intersection of material science, automated manufacturing, and global supply chain resilience.
Unlike conventional transformers that utilize rounded copper wires wound around a bulky core, flat transformers employ planar windings—often integrated into PCBs or utilizing flat copper foils. This design drastically reduces leakage inductance and maximizes thermal dissipation. In the context of User Intent Mining, engineers searching for "Cheap Flat Transformer" are not merely looking for low prices but are seeking "Value-Engineered" solutions that do not compromise on E-E-A-T (Expertise, Authoritativeness, and Trustworthiness).
Optimized interleaving techniques allow for tight coupling, essential for high-frequency switching power supplies (SMPS).
The flat geometry provides a larger cooling surface, allowing for high power throughput in a fraction of the space.
Automated manufacturing ensures every unit has identical electrical characteristics, vital for mass-produced EVs and servers.
The roadmap for flat magnetic components is moving toward Integrated Magnetics. By combining the transformer and inductor into a single planar structure, we can achieve up to a 30% reduction in total volume. Looking toward 2030, the adoption of Wide Bandgap (WBG) semiconductors like GaN and SiC will push operating frequencies into the MHz range, making planar technology not just an option, but a requirement for industrial efficiency.
Wuxi Shuhong Machinery Technology Co., Ltd. is a leading manufacturer for electrical machinery and aluminium-plastic panel manufacturing machinery. Our core expertise lies in the full industrial chain layout: from silicon steel and iron core production lines to amorphous iron core production lines, and transformer oil tank production equipment.
We provide the fundamental tooling and precision machinery that enable the production of high-performance Flat Transformers and traditional power systems. Our direct-from-factory model ensures that clients receive transparent prices without sacrificing the "Information Gain" provided by our expert technical support.
The global industrial status of flat transformers is heavily dependent on the "China Supply Chain Advantage." As a hub of raw materials (Silicon Steel, Amorphous Alloys) and precision machinery manufacturing, China offers a unique ecosystem where "Cheap" translates to "Economies of Scale" rather than low quality.
From design to sample within 7-14 days due to localized component availability.
Integrated manufacturing of cores, tanks, and winding equipment reduces logistics overhead.
Adherence to ISO and CE standards with rigorous machine performance testing.
Flat transformers are increasingly localized for specific high-growth sectors:
Exploring our core technology advantages across the industrial chain
Deploying electrical equipment globally requires more than just performance; it requires Compliance & Reliability. Our products adhere to international standards including IEC, ANSI, and GB. By utilizing advanced vacuum annealing furnaces for metal and silicon steel, we ensure the magnetic properties of our cores are optimized for long-term service life.
Years Experience
Global Projects
Technical Support
A: Flat transformers have a significantly higher surface area, allowing them to dissipate heat better. Their planar winding structure reduces proximity effects and leakage inductance, which are the primary causes of energy loss at high frequencies.

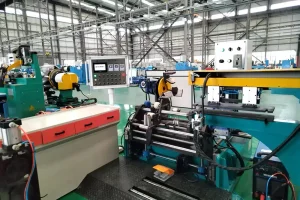

A: Yes, our custom three-layer foil winding machines and all-in-one foil-and-wire machines are designed for maximum flexibility, supporting various widths and thicknesses to meet specific power requirements.
A: We utilize high-precision CNC technology and robust silicon steel materials. Every machine undergoes performance testing before delivery, supported by our full after-sales service and factory-direct technical consultancy.
A: Depending on the complexity, standard machines are delivered within 4-6 weeks, while highly customized integrated lines may take 8-12 weeks, leveraging our efficient China-based supply chain.
Precision Engineering for the Global Power Industry
Get in touch with our engineering team for a customized white-paper analysis of your flat transformer needs.
